:: Dryer

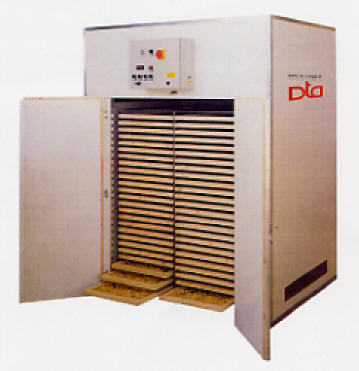

Drying cell suitable for pasta drying.



Main structure in painted steel plates with thermic insulation, automatic programmable drying xycle, electric or hot water heating system.





Technical features:



Model EC25 EC50 EC100 EC200
Frames N. (600x1200) 25 50 100 200
Medium batch capacity 100 200 400 800
Dimensions mm 1760x785x 2260h 1760x1420x 2260h 1760x2640 x2260h 1760x5080 x2260h
Weight Kg 273 450 750 1350
Electric absorption Kw/Kcal 1,8/-- 3/8000 6/16000 12/32000
